| Mfr | NXP USA Inc. |
|---|---|
| Series | HC05 |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | HC05 |
| Core Size | 8-Bit |
| Speed | 2.1MHz |
| Peripherals | POR, WDT |
| Number of I/O | 32 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | OTP |
| RAM Size | 528 x 8 |
| Voltage – Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |

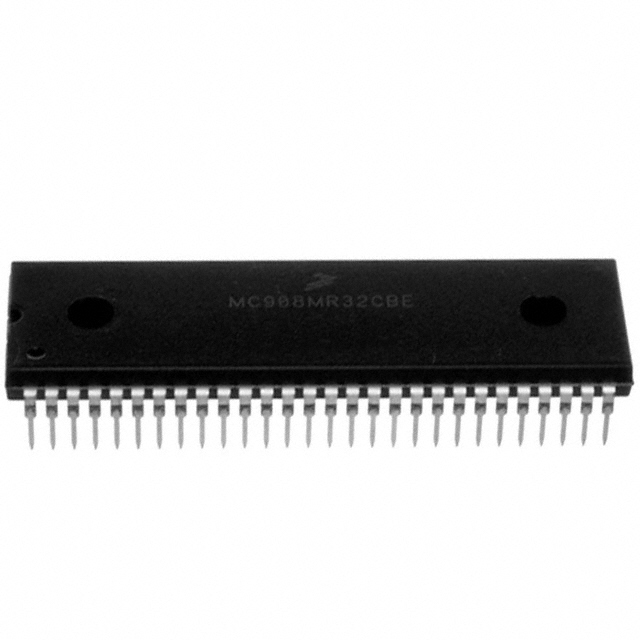

| Supplier Device Package | 56-PSDIP |
| Package / Case | 56-SDIP (0.600", 15.24mm) |
| Base Product Number | XC70 |
| Data Converters | A/D 8x8b; D/A 2x8b |
| Connectivity | SCI |
| EEPROM Size | 256 x 8 |
