| Mfr | Renesas Electronics Corporation |
|---|---|
| Series | V850E2/Dx4 |
| Packaging | Bulk |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | V850E2M |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Peripherals | DMA, I2S, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 105 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 192K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

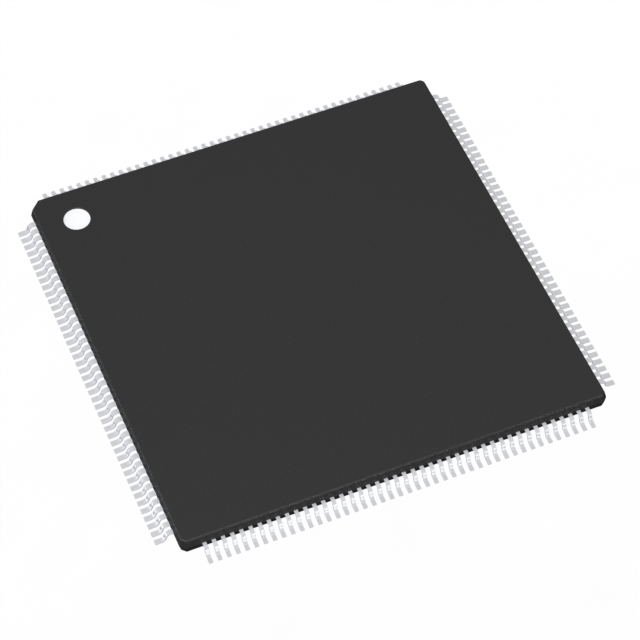

| Supplier Device Package | 144-LFQFP (20×20) |
| Package / Case | 144-LQFP |
| Base Product Number | UPD70F3525 |
| Data Converters | A/D 16x12b |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, LINbus, SCI, SPI, SSI, UART/USART, USB |
| EEPROM Size | 32K x 8 |
