| Mfr | NXP USA Inc. |
|---|---|
| Series | S/MM9 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | S12 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 3 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

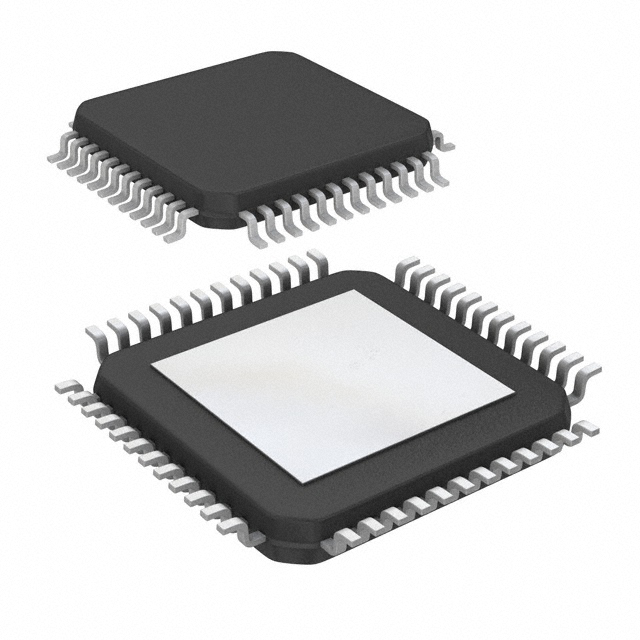

| Supplier Device Package | 48-HLQFP (7×7) |
| Package / Case | 48-LQFP Exposed Pad |
| Base Product Number | SM912F634 |
| Data Converters | A/D 15x10b |
| Connectivity | LINbus, SCI, SPI |
