| Manufacturer | NXP USA Inc. |
|---|---|
| Series | i.MX6SX |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Speed | 227MHz, 1GHz |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Voltage – I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Operating Temperature | -20°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |

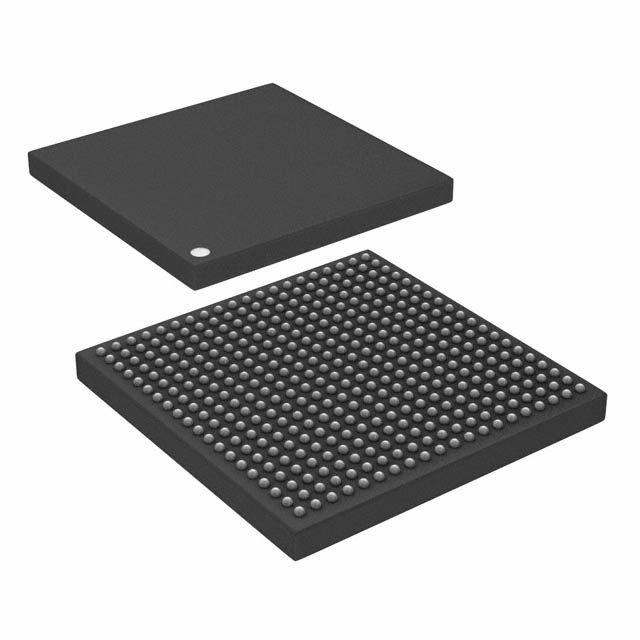

| Package / Case | 400-LFBGA |
| Supplier Device Package | 400-MAPBGA (14×14) |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, UART |
| Base Product Number | SCIMX6 |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| Display & Interface Controllers | Keypad, LCD, LVDS |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
