| Mfr | NXP USA Inc. |
|---|---|
| Series | S12 MagniV |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | S12Z |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 19 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Voltage – Supply (Vcc/Vdd) | 5.5V ~ 18V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |

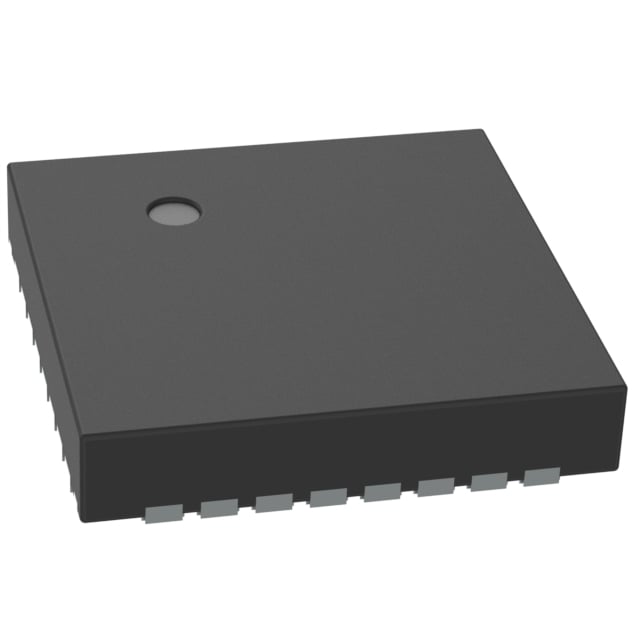

| Supplier Device Package | 32-HVQFN (5×5) |
| Package / Case | 32-VFQFN Exposed Pad |
| Base Product Number | S9S12 |
| Data Converters | A/D 6x10b |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| EEPROM Size | 128 x 8 |
