| Mfr | Freescale Semiconductor |
|---|---|
| Series | S12 MagniV |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | 12V1 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 28 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

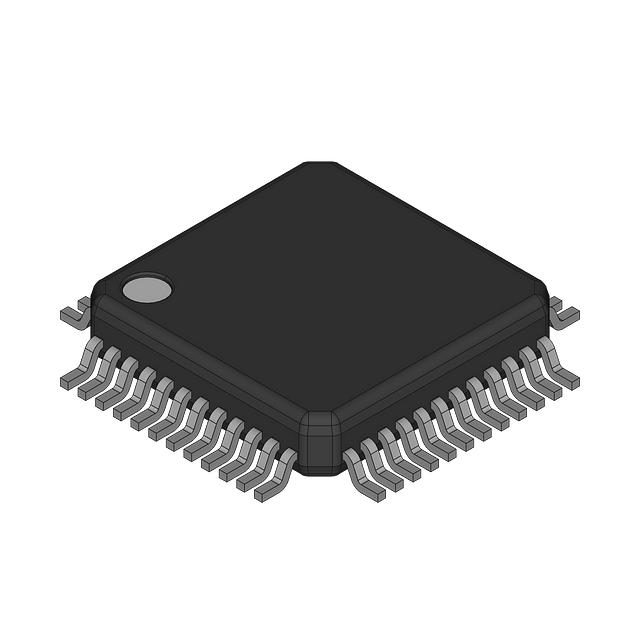

| Supplier Device Package | 48-LQFP (7×7) |
| Package / Case | 48-LQFP |
| Base Product Number | S9S12 |
| Data Converters | A/D 6x10b |
| Connectivity | IrDA, LINbus, SCI, SPI |
| EEPROM Size | 512 x 8 |
