| Mfr | NXP USA Inc. |
|---|---|
| Series | S08 |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

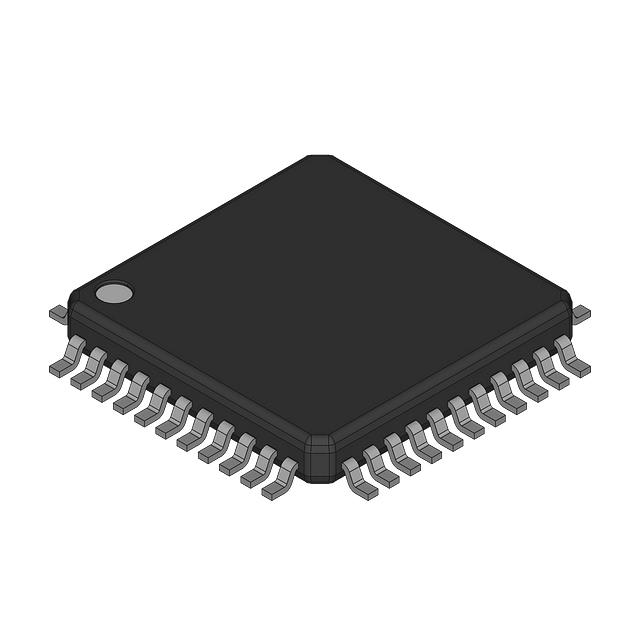

| Supplier Device Package | 44-LQFP (10×10) |
| Package / Case | 44-LQFP |
| Base Product Number | S9S08 |
| Data Converters | A/D 8x10b |
| Connectivity | I2C, SCI, SPI |
