| Mfr | NXP USA Inc. |
|---|---|
| Series | S12 MagniV |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | S12Z |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 31 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 32K x 8 |
| Voltage – Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

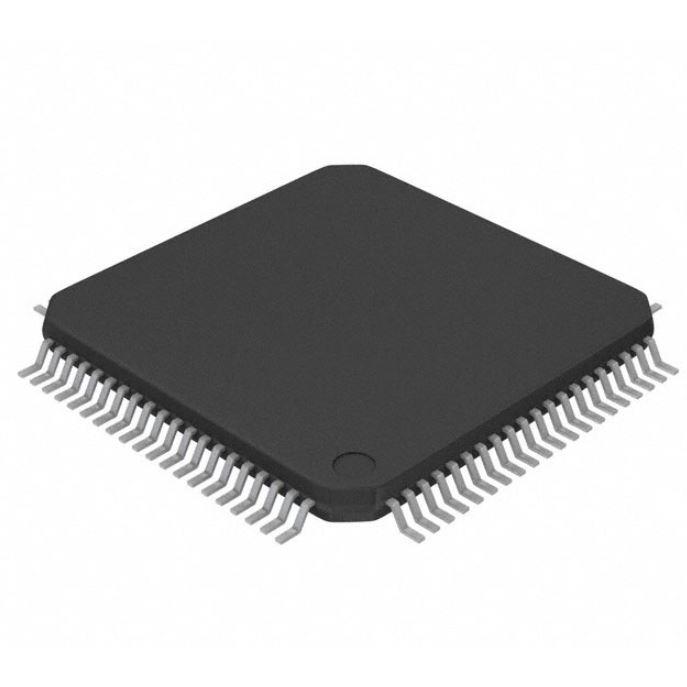

| Supplier Device Package | 80-TQFP-EP (12×12) |
| Package / Case | 80-LQFP Exposed Pad |
| Base Product Number | S912 |
| Data Converters | A/D 16x12b |
| Connectivity | CANbus, SCI, SPI |
| EEPROM Size | 1K x 8 |
