| Mfr | NXP USA Inc. |
|---|---|
| Series | S12 MagniV |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | S12Z |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Peripherals | DMA, LCD, POR, PWM, WDT |
| Number of I/O | 100 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 4K x 8 |
| Voltage – Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

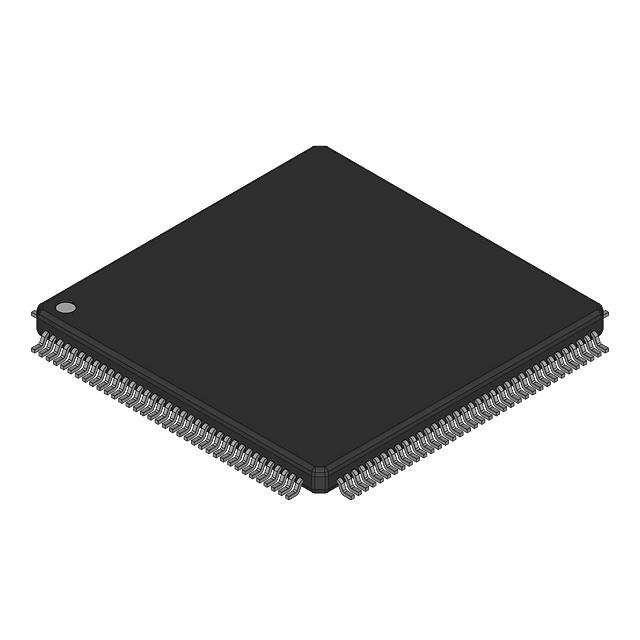

| Supplier Device Package | 144-LQFP (20×20) |
| Package / Case | 144-LQFP |
| Data Converters | A/D 8x10b |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| EEPROM Size | 4K x 8 |
