| Mfr | NXP USA Inc. |
|---|---|
| Series | HC11 |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | HC11 |
| Core Size | 8-Bit |
| Speed | 2MHz |
| Peripherals | POR, WDT |
| Number of I/O | 38 |
| Program Memory Size | 20KB (20K x 8) |
| Program Memory Type | OTP |
| RAM Size | 768 x 8 |
| Voltage – Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 52-PLCC (19.13×19.13) |

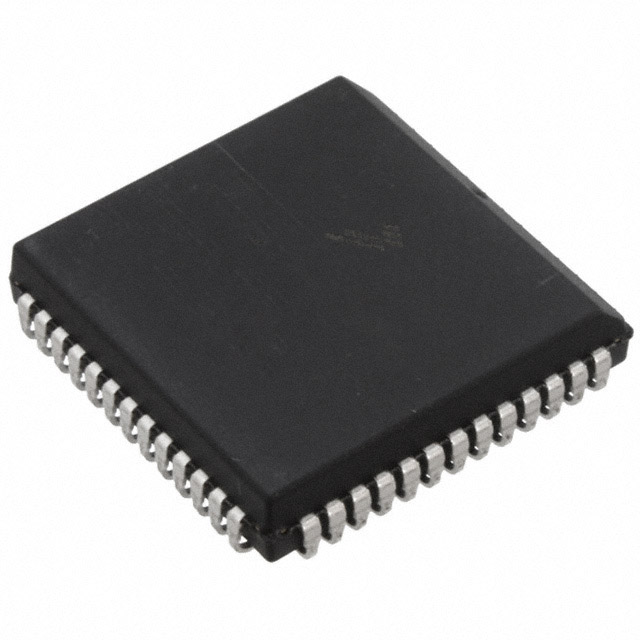

| Package / Case | 52-LCC (J-Lead) |
| Base Product Number | S711E20 |
| Data Converters | A/D 8x8b |
| Connectivity | SCI, SPI |
| EEPROM Size | 512 x 8 |
