| Mfr | Renesas Electronics Corporation |
|---|---|
| Series | Renesas Synergy™ S5 |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 133 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 640K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

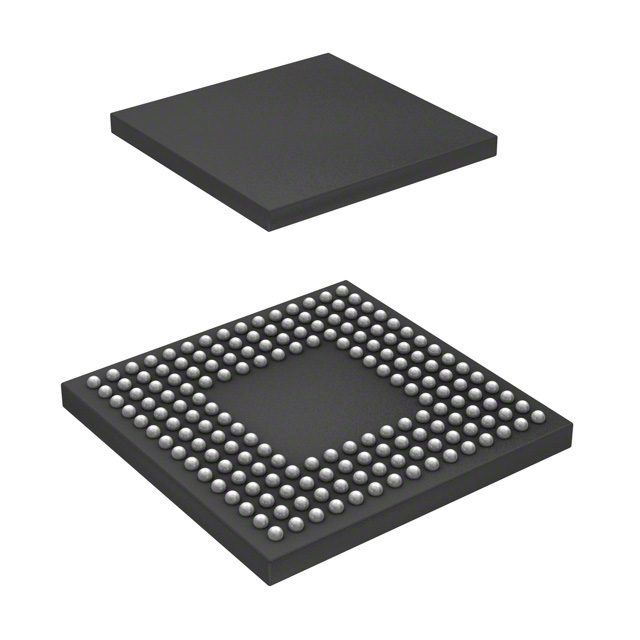

| Supplier Device Package | 176-LFBGA (13×13) |
| Package / Case | 176-LFBGA |
| Base Product Number | R7FS5D97 |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB |
| EEPROM Size | 64K x 8 |
