| Mfr | Renesas Electronics Corporation |
|---|---|
| Series | RL78/F24 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 40MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 24K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

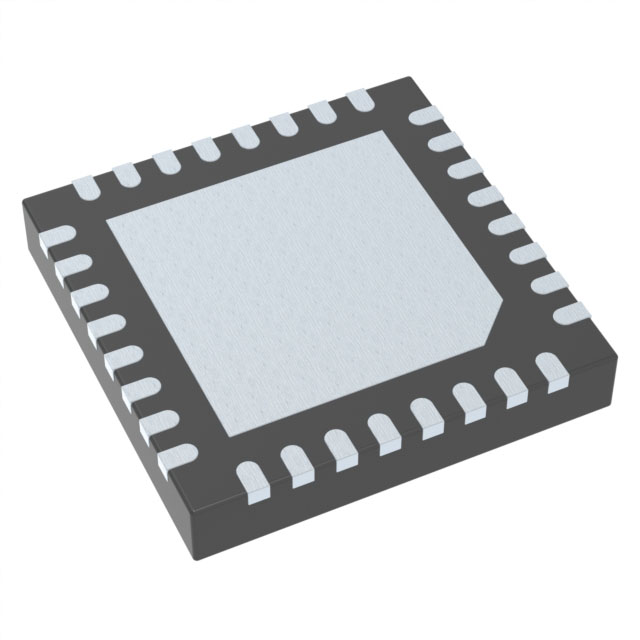

| Supplier Device Package | 32-WQFN (5×5) |
| Package / Case | 32-WFQFN Exposed Pad |
| Base Product Number | R7F124F |
| Data Converters | A/D 10x12b SAR; D/A 1x8b |
| Connectivity | CANbus, CSI, I2C, LINbus, SPI, UART/USART |
| EEPROM Size | 16K x 8 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
