| Mfr | Renesas Electronics Corporation |
|---|---|
| Series | RX231 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Core Processor | RXv2 |
| Core Size | 32-Bit |
| Speed | 54MHz |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 43 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 64K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

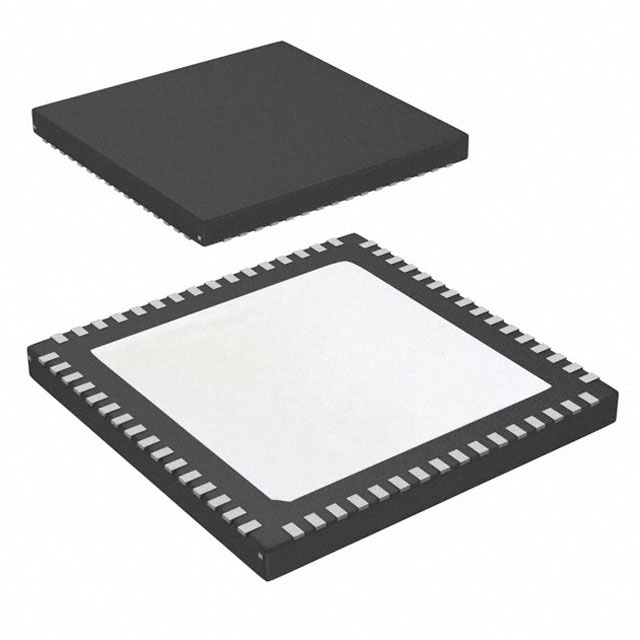

| Supplier Device Package | 64-HWQFN (9×9) |
| Package / Case | 64-WFQFN Exposed Pad |
| Base Product Number | R5F52318 |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Connectivity | CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, UART/USART, USB OTG |
| EEPROM Size | 8K x 8 |
