| Mfr | Renesas Electronics Corporation |
|---|---|
| Series | R8C/3x/3JM |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 31 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

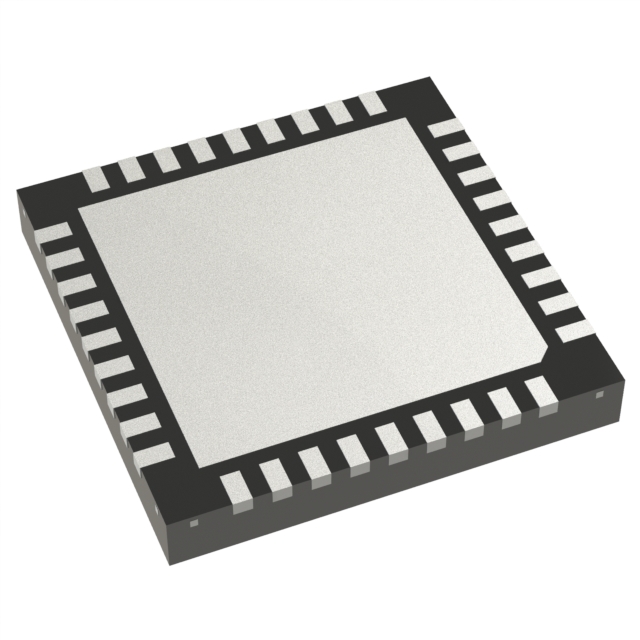

| Supplier Device Package | 36-HWQFN (6×6) |
| Package / Case | 36-WFQFN Exposed Pad |
| Base Product Number | R5F213J2 |
| Data Converters | A/D 10x10b; D/A 2x8b |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| EEPROM Size | 4K x 8 |
