| Mfr | NXP USA Inc. |
|---|---|
| Series | Kinetis K20 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-WLCSP (4.13×3.56) |

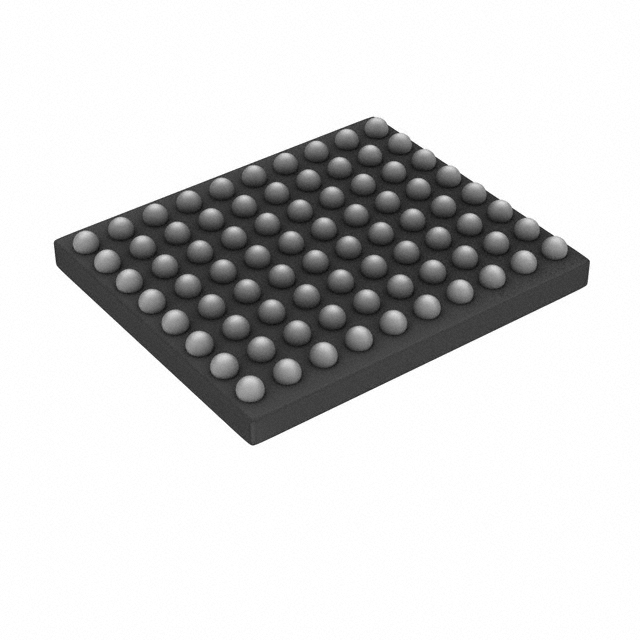

| Package / Case | 80-UFBGA, WLCSP |
| Base Product Number | MK22FN256 |
| Data Converters | A/D 2x16b; D/A 2x12b |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB, USB OTG |
