Manufacturer's product number
Manufacturer
Description
Detailed description
Download
| Mfr | Freescale Semiconductor |
|---|---|
| Series | S08 |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Peripherals | PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 768 x 8 |
| Voltage – Supply (Vcc/Vdd) | 4.5V ~ 18V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

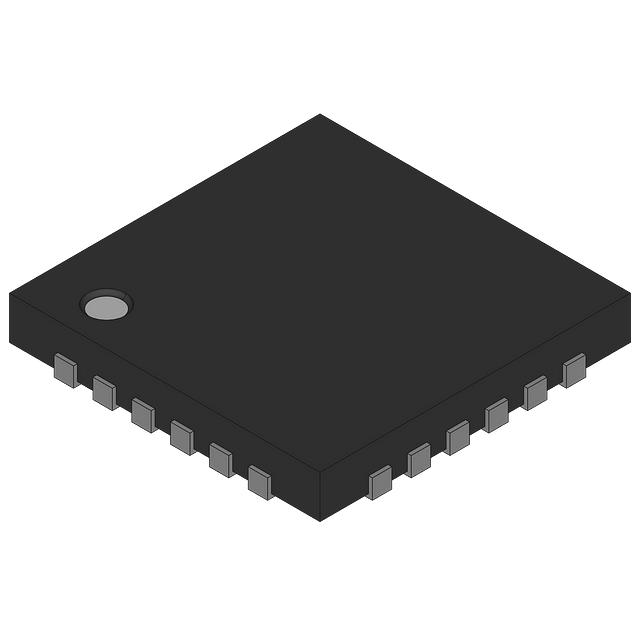

| Supplier Device Package | 24-QFN (4×4) |
| Package / Case | 24-UFQFN Exposed Pad |
| Base Product Number | MC9S08 |
| Data Converters | A/D 8x12b |
| Connectivity | I2C, SCI |
