| Mfr | Freescale Semiconductor |
|---|---|
| Series | S08 |
| Packaging | Bulk |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 512 x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

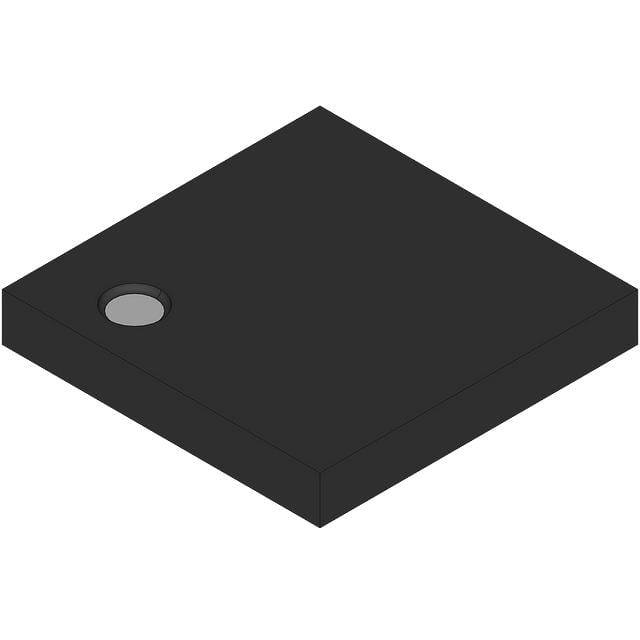

| Supplier Device Package | 16-QFN-EP (5×5) |
| Package / Case | 16-VQFN Exposed Pad |
| Base Product Number | MC9S08 |
| Data Converters | A/D 8x10b |
| Connectivity | I2C, SCI, SPI |
