| Mfr | NXP Semiconductors |
|---|---|
| Series | HC08 |
| Packaging | Bulk |
| Part Status | Active |
| Core Processor | M68HC08 |
| Core Size | 8-Bit |
| Speed | 8MHz |
| Peripherals | LED, LVD, POR, PWM |
| Number of I/O | 15 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128 x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

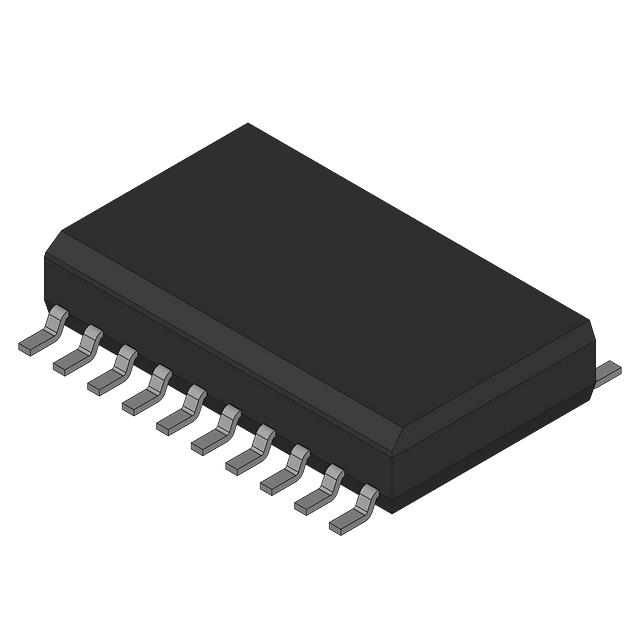

| Supplier Device Package | 20-SOIC |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Data Converters | A/D 10x8b SAR |
