| Mfr | NXP USA Inc. |
|---|---|
| Series | 56F8xxx |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | 56800E |
| Core Size | 16-Bit |
| Speed | 60MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 4K x 16 |
| Voltage – Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

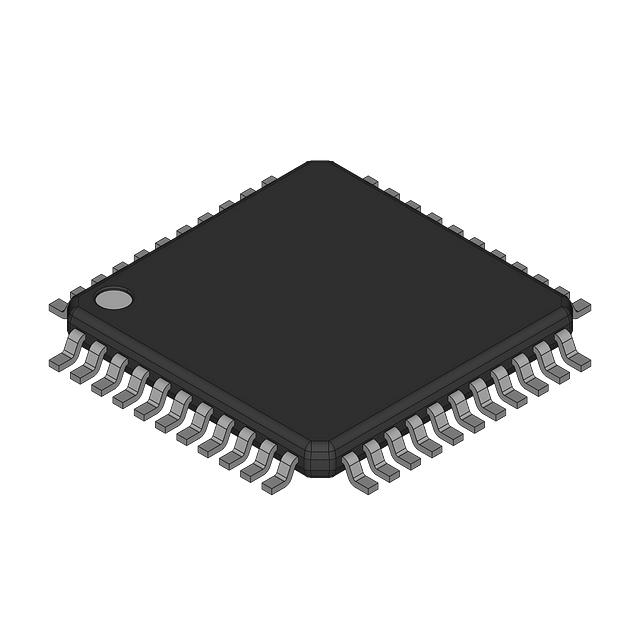

| Supplier Device Package | 44-LQFP (10×10) |
| Package / Case | 44-LQFP |
| Base Product Number | MC56F82 |
| Data Converters | A/D 8x12b; D/A 1x12b |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
