| Mfr | NXP USA Inc. |
|---|---|
| Series | 56F8xxx |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | 56800 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |

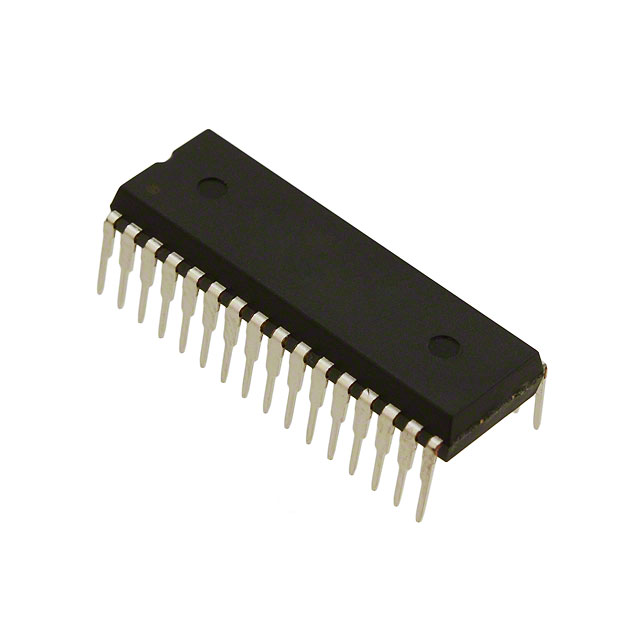

| Supplier Device Package | 32-SDIP |
| Package / Case | 32-SDIP (0.400", 10.16mm) |
| Base Product Number | MC56F80 |
| Data Converters | A/D 18x12b |
| Connectivity | I2C, LINbus, SCI, SPI |
