| Mfr | NXP Semiconductors |
|---|---|
| Series | LPC2300 |
| Packaging | Bulk |
| Part Status | Active |
| Core Processor | ARM7TDMI-S |
| Core Size | 16/32-Bit |
| Speed | 72MHz |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 104 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 58K x 8 |
| Voltage – Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

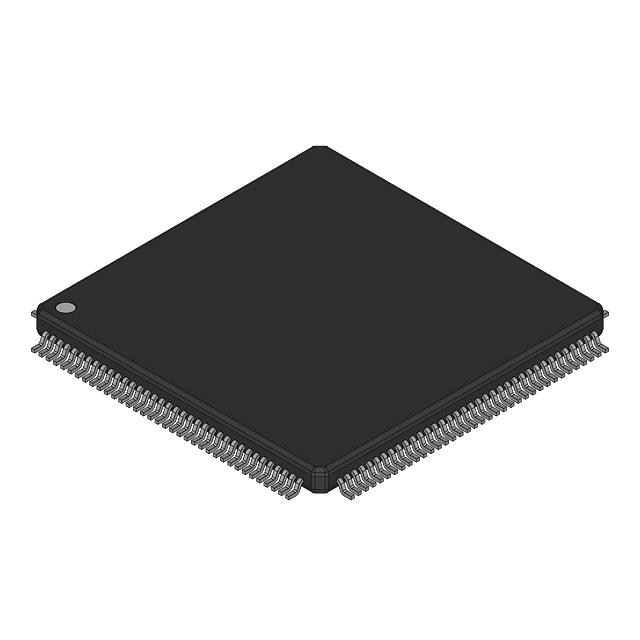

| Supplier Device Package | 144-LQFP (20×20) |
| Package / Case | 144-LQFP |
| Data Converters | A/D 1x10b SAR; D/A 1x10b |
| Connectivity | EBI/EMI, Ethernet, I2C, Microwire, SPI, SSI, SSP, UART/USART |
