| Mfr | NXP USA Inc. |
|---|---|
| Series | LPC2200 |
| Packaging | Bag |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 60MHz |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 112 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 16K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

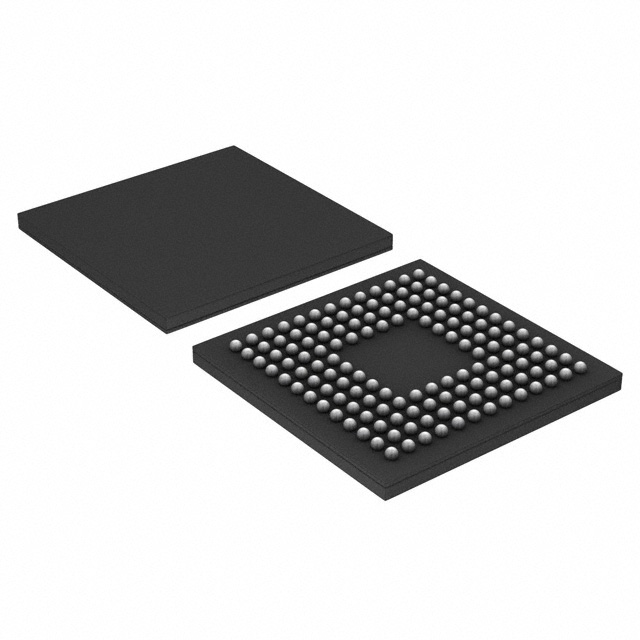

| Supplier Device Package | 144-TFBGA (12×12) |
| Package / Case | 144-TFBGA |
| Base Product Number | LPC2292 |
| Data Converters | A/D 8x10b |
| Connectivity | CANbus, EBI/EMI, I2C, Microwire, SPI, SSI, SSP, UART/USART |
