| Mfr | NXP USA Inc. |
|---|---|
| Series | LPC11Uxx |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit |
| Speed | 50MHz |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 26 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 8K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

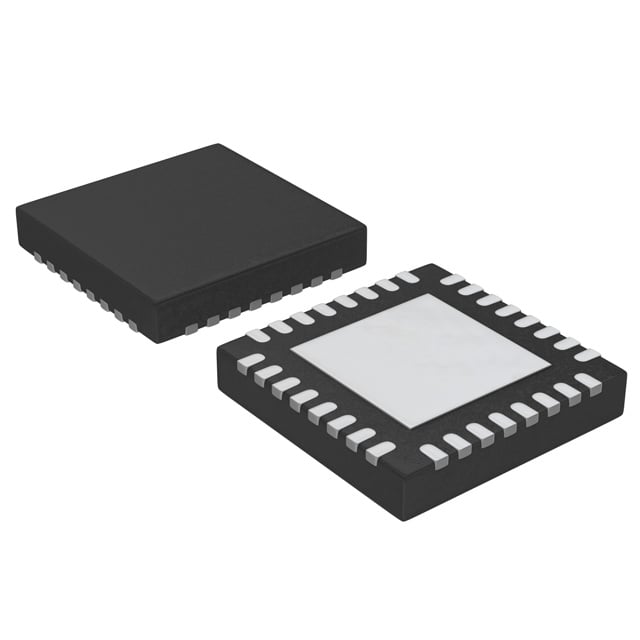

| Supplier Device Package | 33-HVQFN (5×5) |
| Package / Case | 32-VFQFN Exposed Pad |
| Base Product Number | LPC11 |
| Data Converters | A/D 8x10b |
| Connectivity | I2C, Microwire, SPI, SSI, SSP, UART/USART, USB |
| EEPROM Size | 2K x 8 |
