| Mfr | NXP Semiconductors |
|---|---|
| Series | LPC11Axx |
| Packaging | Bulk |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit |
| Speed | 50MHz |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 42 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 4K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.6V ~ 3.6V |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

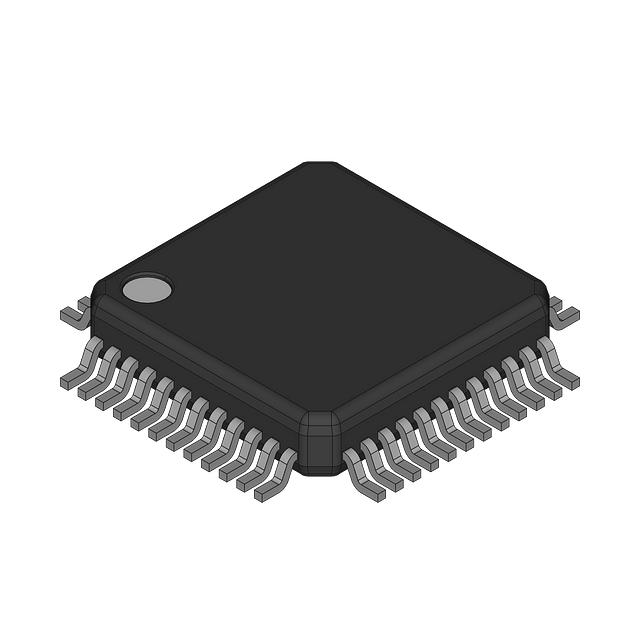

| Supplier Device Package | 48-LQFP (7×7) |
| Package / Case | 48-LQFP |
| Data Converters | A/D 8x10b SAR; D/A 1x10b |
| Connectivity | I2C, Microwire, SPI, SSI, SSP, UART/USART |
| EEPROM Size | 1K x 8 |
