| Mfr | Renesas |
|---|---|
| Packaging | Bulk |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | H8S/2000 |
| Core Size | 32-Bit |
| Speed | 24MHz |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 20K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |

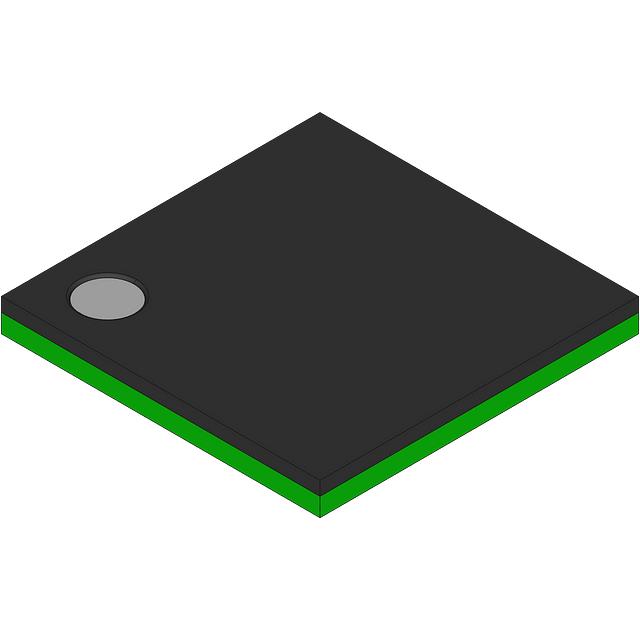

| Supplier Device Package | 112-LFBGA (10×10) |
| Package / Case | 112-LFBGA |
| Base Product Number | DF2215 |
| Data Converters | A/D 6x10b SAR; D/A 2x8b |
| Connectivity | SCI, SmartCard, USB |
