| Mfr | Infineon Technologies |
|---|---|
| Series | FR CY91520 |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | FR81S |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 120 |
| Program Memory Size | 576KB (576K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 72K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (16×16) |

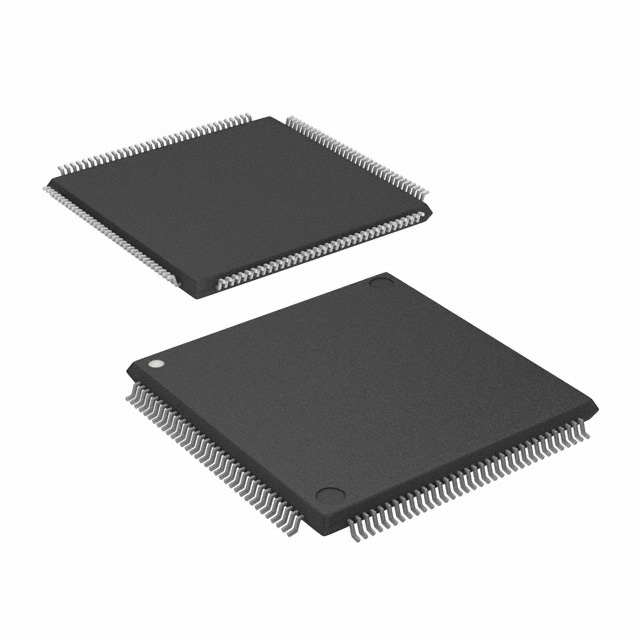

| Package / Case | 144-LQFP |
| Base Product Number | CY91F524 |
| Data Converters | A/D 48x12b SAR; D/A 2x8b |
| Connectivity | CANbus, CSIO, EBI/EMI, I2C, LINbus, SPI, UART/USART |
| EEPROM Size | 64K x 8 |
