| Mfr | Infineon Technologies |
|---|---|
| Series | PSOC™1 CY8C24xxx |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

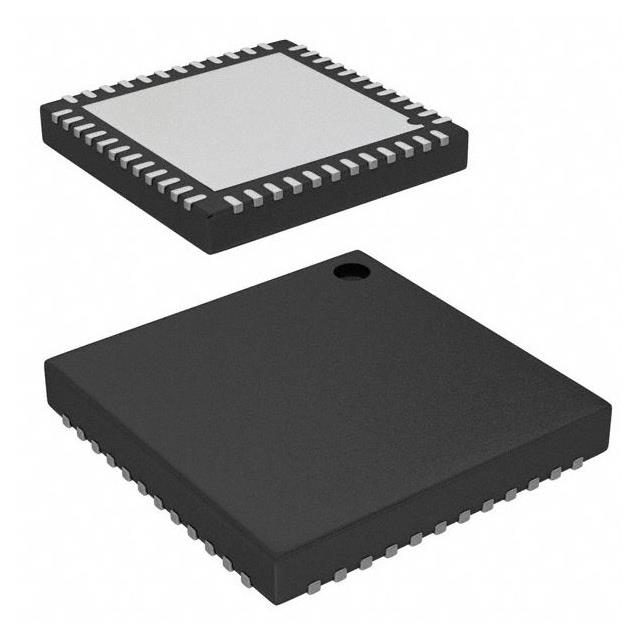

| Supplier Device Package | 48-QFN (6×6) |
| Package / Case | 48-UFQFN Exposed Pad |
| Base Product Number | CY8C24393 |
| Data Converters | A/D 1x10b |
| Connectivity | I2C, SPI |
