| Mfr | Cypress Semiconductor Corp |
|---|---|
| Series | PSOC®1 CY8C21xxx |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 512 x 8 |
| Voltage – Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

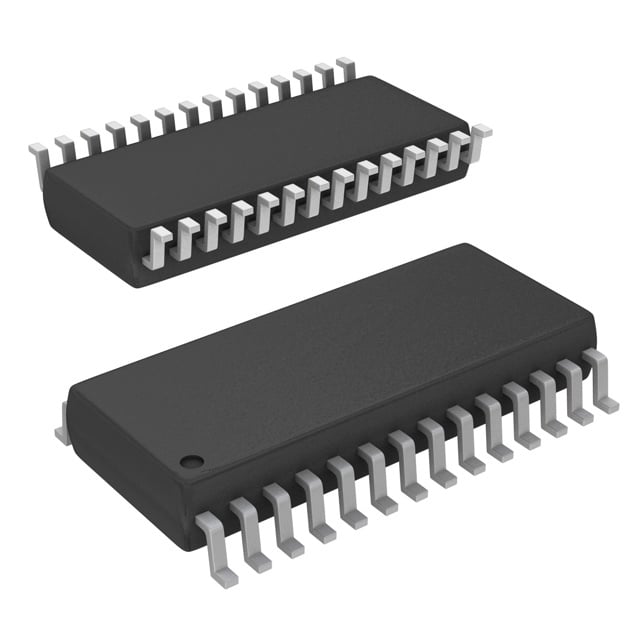

| Supplier Device Package | 28-SOIC |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Base Product Number | CY8C21345 |
| Data Converters | A/D 3x10b |
| Connectivity | I2C, IrDA, SPI, UART/USART |
