| Mfr | NXP USA Inc. |
|---|---|
| Series | S12 MagniV |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | S12Z |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 8K x 8 |
| Voltage – Supply (Vcc/Vdd) | 5.5V ~ 18V |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |

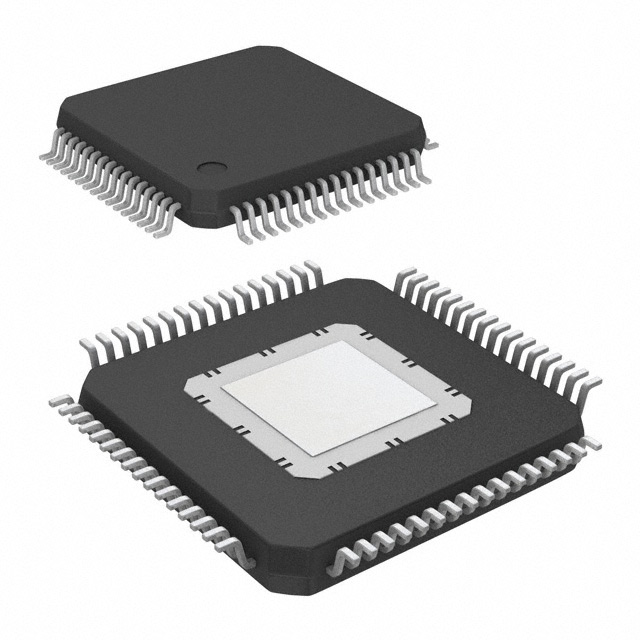

| Supplier Device Package | 64-HLQFP (10×10) |
| Package / Case | 64-LQFP Exposed Pad |
| Data Converters | A/D 9x12b SAR |
| Connectivity | CANbus, SCI, SPI |
| EEPROM Size | 512 x 8 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
