| Mfr | Atmel |
|---|---|
| Series | AVR® 90PWM Lighting |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Peripherals | Brown-out Detect/Reset, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

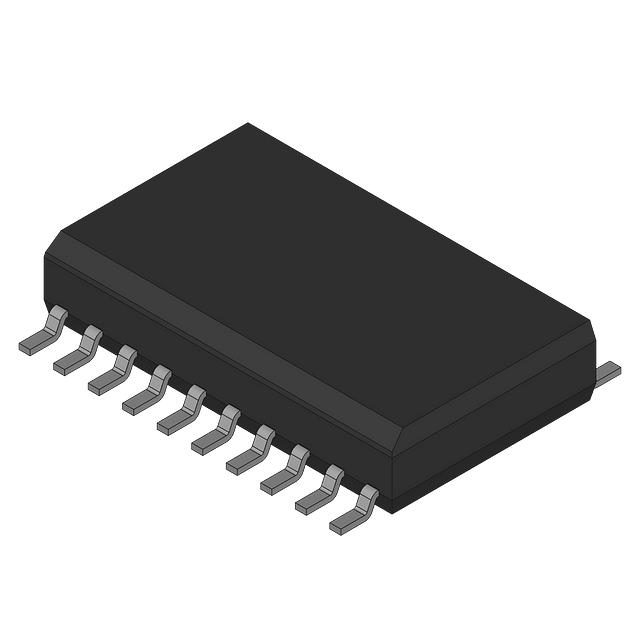

| Supplier Device Package | 20-SOIC |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Base Product Number | AT90PWM81 |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Connectivity | SPI |
| EEPROM Size | 512 x 8 |
