| Mfr | Microchip Technology |
|---|---|
| Series | 89C |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | 80C51 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 20 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 512 x 8 |
| Voltage – Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

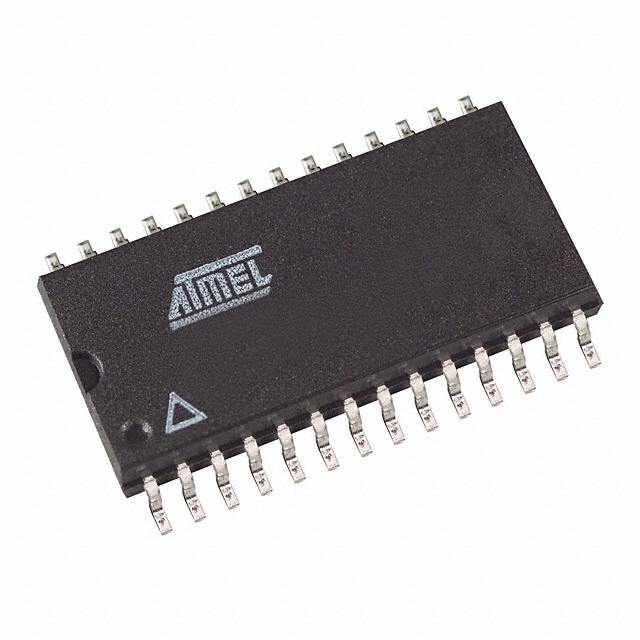

| Supplier Device Package | 28-SOIC |
| Package / Case | 28-SOIC (0.400", 10.16mm Width) |
| Base Product Number | AT89C5115 |
| Data Converters | A/D 8x10b |
| Connectivity | UART/USART |
| EEPROM Size | 2K x 8 |
