| Mfr | Altera |
|---|---|
| Series | 87C |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | MCS 96 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Peripherals | PWM |
| Number of I/O | 41 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | OTP |
| RAM Size | 1.5K x 8 |
| Voltage – Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

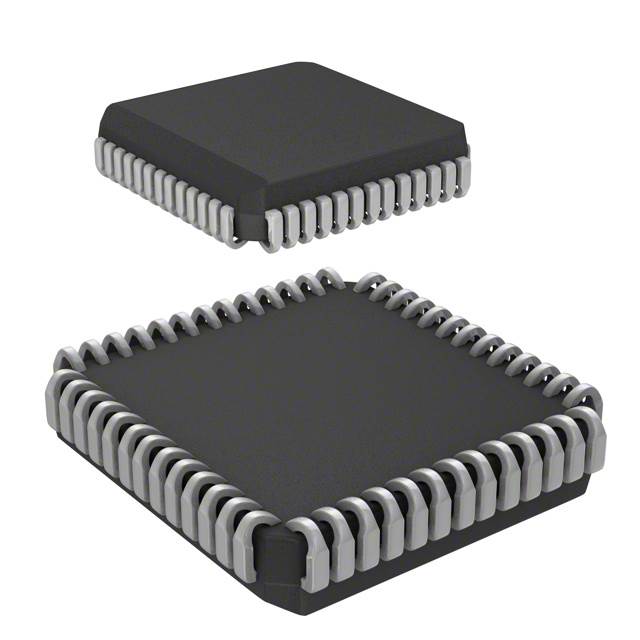

| Supplier Device Package | 52-PLCC (19×19) |
| Package / Case | 52-LCC (J-Lead) |
| Base Product Number | AN87C196 |
| Data Converters | A/D 6x10b |
| Connectivity | SIO |
