| Mfr | Analog Devices Inc. |
|---|---|
| Series | MicroConverter® ADuC8xx |
| Packaging | Tape & Reel (TR) |
| Part Status | Discontinued at DigiKey |
| DigiKey Programmable | Not Verified |
| Core Processor | 8052 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Peripherals | PSM, Temp Sensor, WDT |
| Number of I/O | 34 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

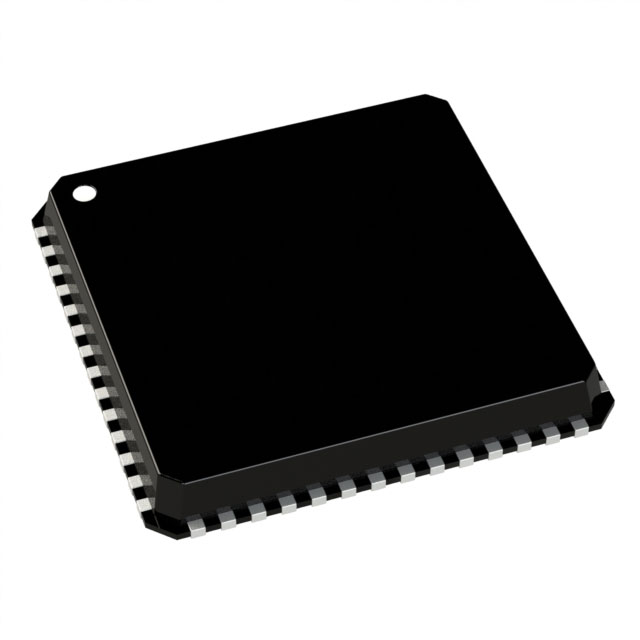

| Supplier Device Package | 56-LFCSP-VQ (8×8) |
| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Base Product Number | ADUC812 |
| Data Converters | A/D 8x12b; D/A 2x12b |
| Connectivity | I2C, SPI, UART/USART |
| EEPROM Size | 640 x 8 |
